Description
📊 Technical Data Sheet
🔹 General Specifications
| Category | Specification |
|---|---|
| Product Type | Mini Portable Power Bank (DC UPS) |
| Brand | Orset |
| Model | DC1018P-8800mAh |
| Type | DC UPS |
| Phase | Single Phase |
| Application | Modem, Router |
🔹 Electrical Specifications
| Parameter | Details |
|---|---|
| Rated Power | 18W (24W / 36W Optional) |
| Electric Energy | 32 Wh |
| Frequency | 50 / 60Hz |
| Output Ports | 5V / 9V / 12V, USB, POE, LAN |
🔹 Battery Specifications
| Parameter | Details |
|---|---|
| Battery Type | Lithium-ion / LiFePO₄ (Optional) |
| Battery Capacity | 8800mAh (10400mAh Optional) |
| Backup Support | Suitable for Small Devices |
| Protection | Short Circuit Protection |

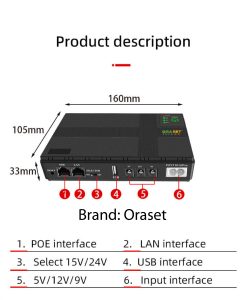

🔹 Physical Specifications
| Parameter | Details |
|---|---|
| Dimensions | 160 × 105 × 33 mm |
| Weight | 0.55 kg |
| Color | Black / White |
| Display | Digital LED Screen |
🔹 Packaging Information
| Parameter | Details |
|---|---|
| Selling Unit | Single Item |
| Package Size | 16.5 × 11 × 3.8 cm |
| Gross Weight | 1.0 kg |

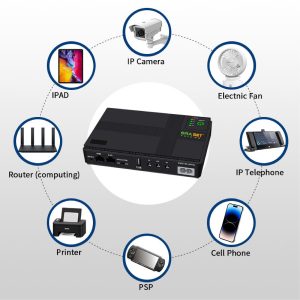

🔹 Applications
- 🌐 WiFi Router Backup
- 📡 Modem Power Supply
- 📞 IP Phone / ONU Devices
- 🏠 Home & Small Office Use
🔹 Advantages
- Ensures uninterrupted internet during power cuts
- Portable & easy to install
- Energy efficient & safe
- Multiple device compatibility
✨ Stay Connected Anytime with Reliable Mini UPS Power Backup
