Description
Charging Specification
Recommended Charging Voltage: 14.4V – 14.6V
Float Voltage: 13.6V – 13.8V
Charge Method: CC / CV (Constant Current / Constant Voltage)
Standard Charging Current: 20A
Maximum Charging Current: 50A
BMS Charging Cut-off Voltage: 14.8V
Charge voltage around 14.4–14.6V is standard for this battery class. ()
Discharging Specification
Discharge Cut-off Voltage: 10.8V
Maximum Continuous Discharge Current: 100A
Peak Discharge Current: 150A (5 Seconds)
Instant Peak Current: Up to 200A (Short Duration)
Many 12V 100Ah LiFePO4 batteries support 100A continuous discharge with higher short-duration peak discharge. ()
Temperature Range
Charging Temperature: 0°C to 45°C
Discharging Temperature: -20°C to 60°C
Storage Temperature: 0°C to 50°C
Built-in Smart BMS Protection
✔ Over Charge Protection
✔ Over Discharge Protection
✔ Short Circuit Protection
✔ Over Current Protection
✔ High Temperature Protection
✔ Low Temperature Protection
✔ Cell Balancing Protection
Integrated BMS is a key safety feature for lithium batteries. ()

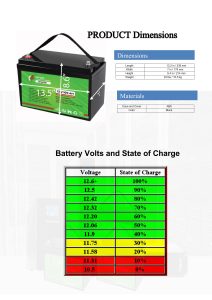

Physical Specification
Terminal Type: M8 Copper Terminal
Battery Case Material: ABS Heavy Duty Plastic
Protection Class: IP65
Weight: Approx. 11–13 KG
Dimensions: Compact Standard Design
Weight for this battery class is commonly around 11–14 kg depending on casing and BMS. ()
Applications
✔ IPS
✔ UPS
✔ Solar System
✔ Inverter
✔ Telecom Backup
✔ CCTV Backup Power
✔ Emergency Backup
✔ RV / Marine Use
✔ Off-grid Solar Storage
Key Features
✔ Long Backup Time
✔ Fast Charging
✔ Deep Cycle Performance
✔ Lightweight Design
✔ High Efficiency
✔ Safe & Reliable
✔ Maintenance Free
✔ Eco-Friendly Technology
